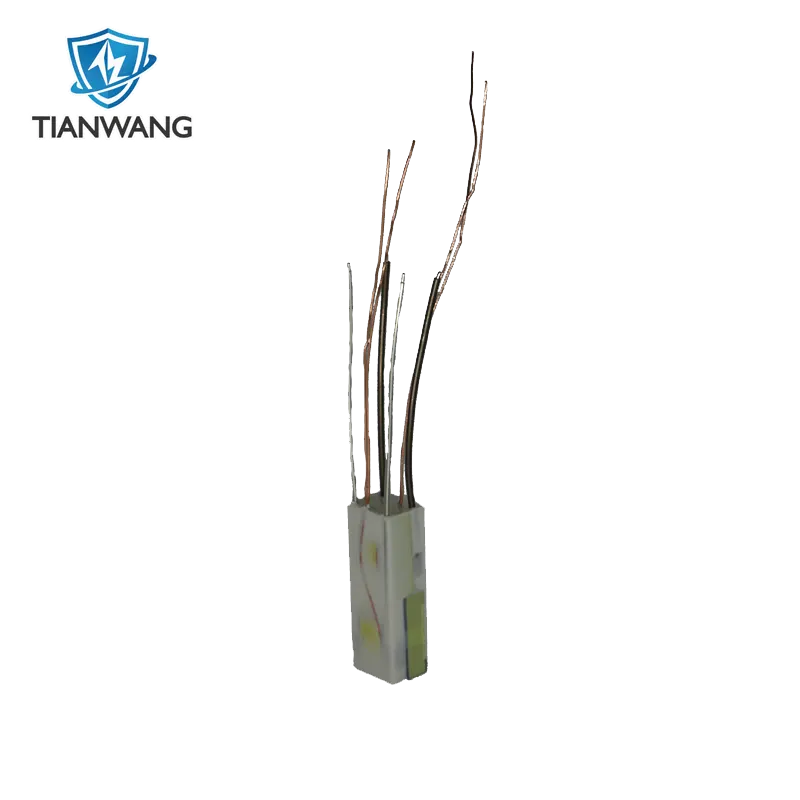

Slim Dual Arc Ignition Module for Arc Lighters, Gas Stoves and Small Ignition Devices

The 215 is a slim dual arc ignition module built for battery-powered ignition devices with limited internal space. With a slim 11 × 7.9 × 30 mm body and a 3.7V DC input, it delivers roughly 8kV output and an ignition distance of about 6mm. Typical applications include dual arc lighters, gas stoves, cartridge stove igniters and other small electronic ignition devices.

Why the Narrow Profile Matters

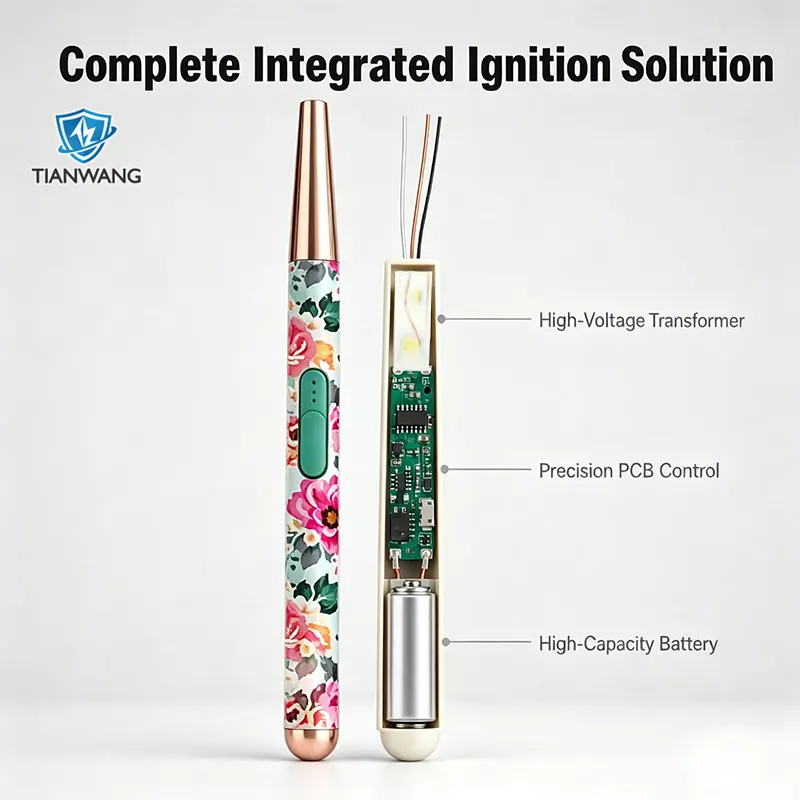

Most dual arc Ignition Module are built wide, and that works fine inside standard lighter housings. It becomes a problem in slim products such as pen-shaped arc ignition devices, where there is no room for a wide component.

The 215’s long, narrow construction lets you place the high-voltage section along the housing instead of fighting its width. Product designers generally get more freedom with the PCB layout, battery compartment and electrode arrangement.

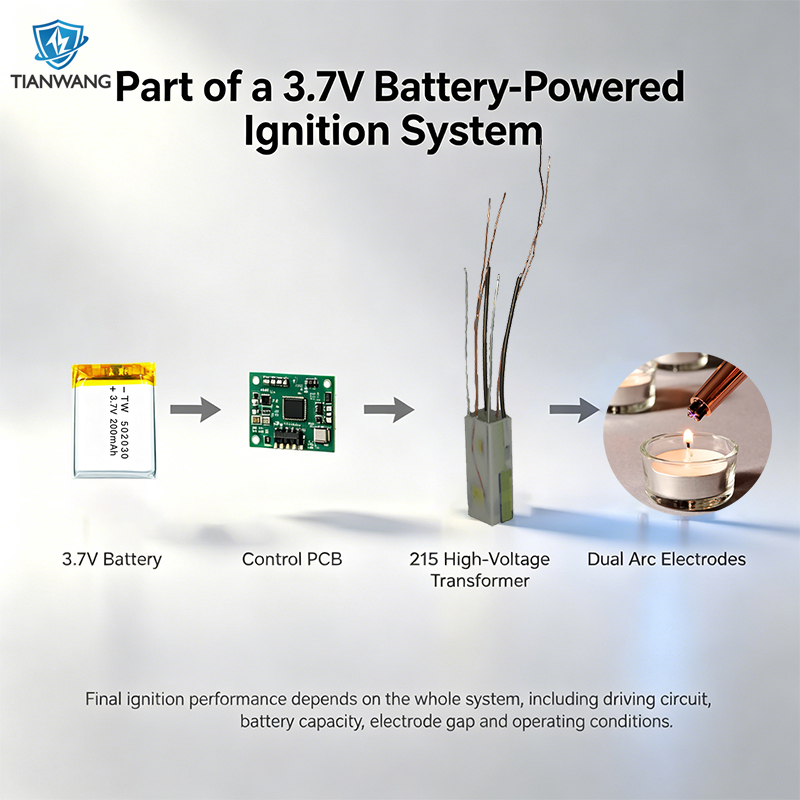

Part of a 3.7V Battery-Powered Ignition System

The standard 215 runs on a 3.7V DC input. It is not a standalone power supply: it needs a control PCB to generate the high-frequency drive signal, plus a battery. A typical setup looks like this:

3.7V battery -Control PCB – 215 high-voltage transformer -dual arc electrodes

Final ignition performance depends on the whole system, including the driving circuit, battery capacity, electrode configuration, electrode gap and operating conditions.

Dual Arc Ignition Module Specifications

Parameter	Specification
Model	215
Product type	Slim dual arc ignition module
Dimensions	11 × 7.9 × 30 mm
Input voltage	3.7V DC
Output voltage	approx. 8kV DC
Working current	approx. 3.5A
Ignition distance	approx. 6mm
Weight	approx. 12g
Customization	Available

Dual Arc Ignition Module Applications

Rechargeable and battery-powered dual arc lighters, Electronic ignition for gas stoves and portable cartridge stoves, Small ignition devices, portable gas appliances and outdoor cooking equipment, Customized OEM ignition systems.

Automated Production and Quality Control

The 215 is manufactured on automated production lines covering coil winding, soldering, assembly, resin encapsulation, electrical testing and final inspection. Consistent winding, reliable connections, proper insulation and stable encapsulation are all critical in a high-voltage component, and the multi-stage inspections help catch issues before products ship.

About Jiangsu Tianwang Solar Technology Co., Ltd.

Established in 1990, Jiangsu Tianwang Solar Technology Co., Ltd. has more than 35 years of experience in manufacturing high-voltage and electronic components. Our main products include ignition transformers, high voltage cascade transformers, high voltage generator modules, electrostatic generators, arc ignition transformers, and other high-voltage components.

With more than 60 sets of production and testing equipment and a professional engineering team, we provide both standard products and customized OEM/ODM solutions. Electrical parameters, dimensions, wiring and other specifications can be customized according to your application requirements.

Request a Custom 215 Dual Arc High Voltage Transformer

Send us your required input voltage, output voltage, dimensions, ignition distance and application details. Our engineering team will evaluate the standard 215 or develop a custom high-voltage ignition transformer for your product.

FAQ

What is the main advantage of the 215 dual arc ignition module?

Its narrow structure. At 11 × 7.9 × 30 mm, it is built for applications where a conventional wider dual arc transformer is difficult to install.

Can the 215 be connected directly to a 3.7V battery?

No. It works as part of a complete ignition system with a control PCB and battery. The PCB provides the appropriate driving signal. If you need a version that operates directly on a battery, we can also customize a product to suit your requirements.

Q: Besides this slim high-voltage generator, do you have any model for use inside dual-arc lighters?
A: Yes, we do. We have the TW-229, which can be used in dual-arc lighters. The two models have different dimensions, but the same electrical performance.
