High Voltage Generator for AED Product Overview

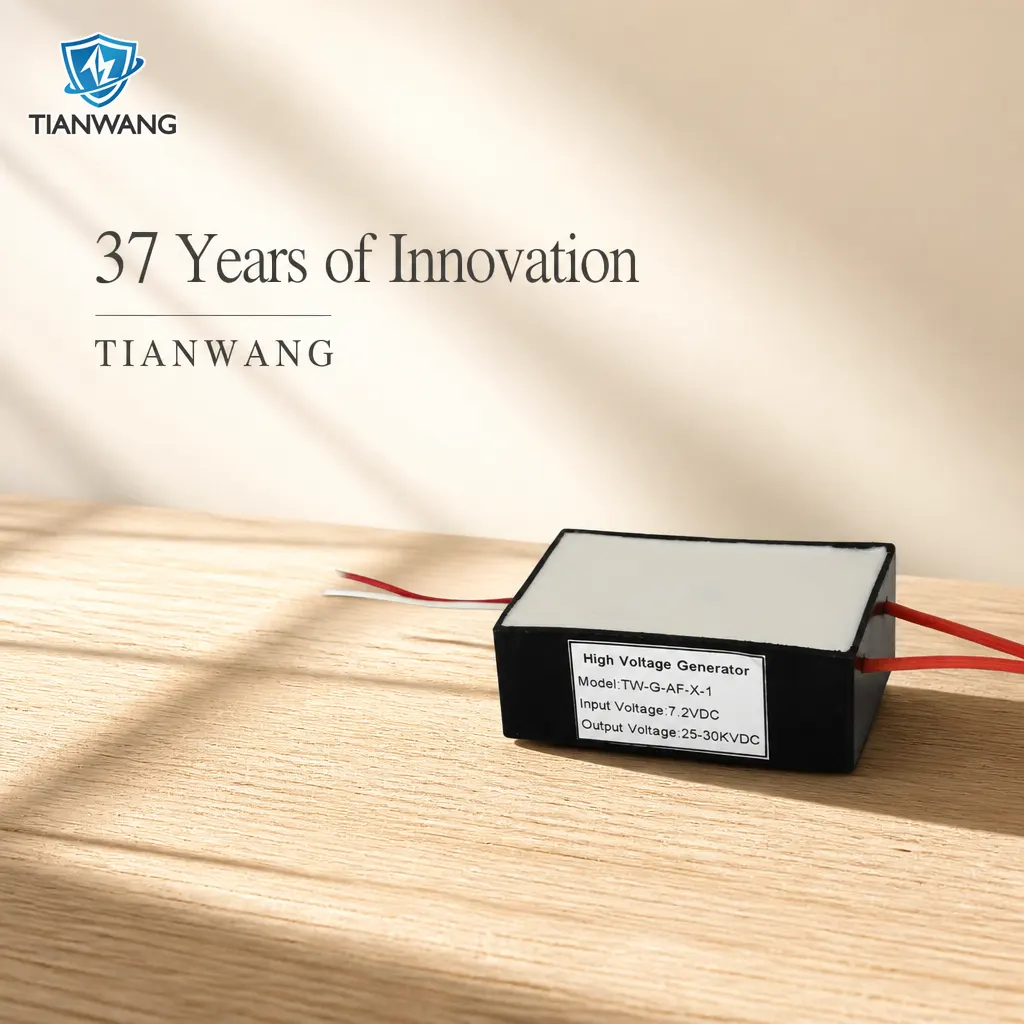

The TW-G-AF-X-1 high voltage generator for AED is built specifically for Automated External Defibrillators (AED). Drawing on our 37 year experience in high voltage technology, this compact module takes 7.2V DC input and delivers stable 28~30KV output. It maintains consistent performance for life saving emergency operations.

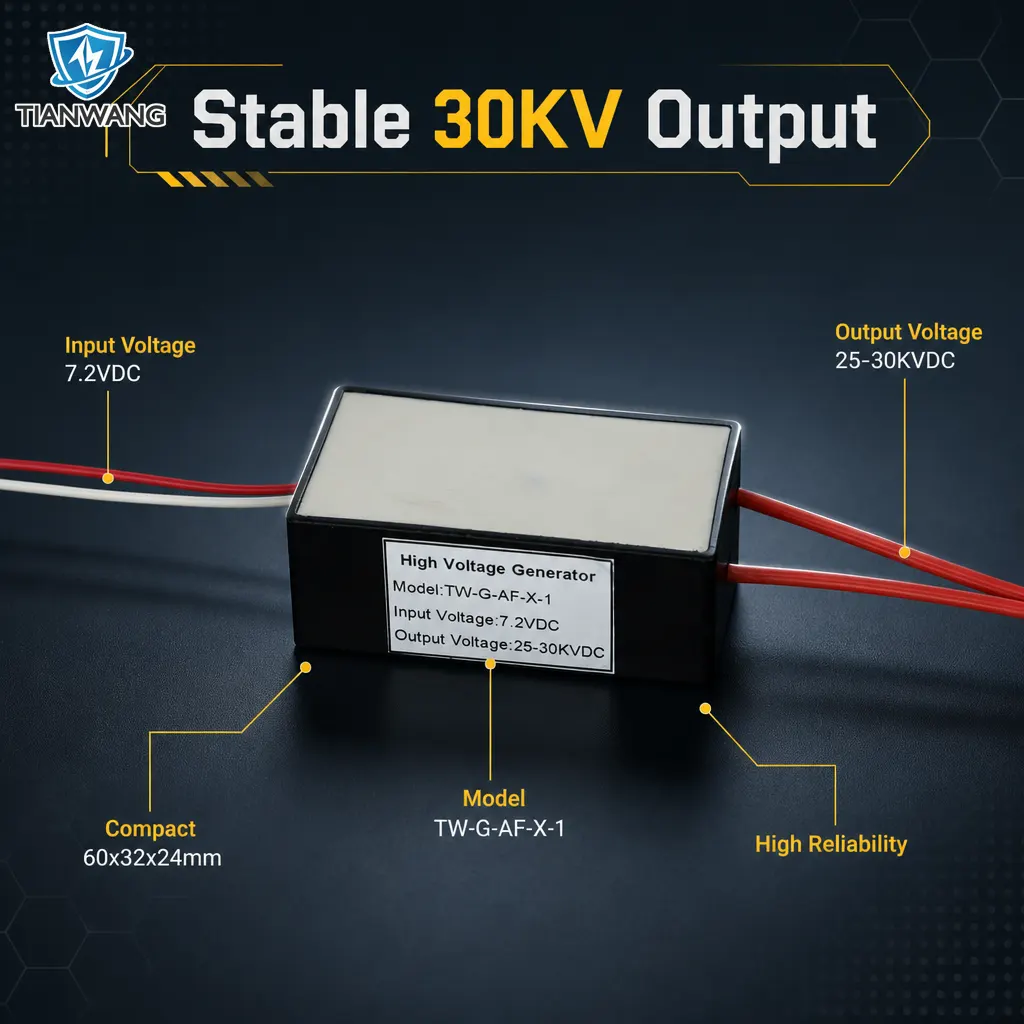

High Voltage Generator for AED Technical Specifications and Application
| Item | Parameter |
| Model | TW-G-AF-X-1 |
| Input Voltage | DC 7.2V |
| Output Voltage | 28~30KV |
| Dimensions | 60×32×24mm |
| Insulation Method | High temperature Vacuum Encapsulation |
| Weight | 79g ±10% |
Product Application:
Automated External Defibrillators (AED)
High voltage pulse trigger systems for medical equipment
Compact plasma generation units for disinfection devices
Self Defense Flashlight
Key Features & Benefits
Medical-Grade Reliability: Engineered with vacuum encapsulation and high-temperature epoxy curing to ensure maximum insulation and stability in critical medical environments.
Ultra-Compact Form Factor: Measuring only 60x32x24mm, it is ideal for space-constrained portable AED devices without compromising on power.
High Energy Efficiency: Optimized DC 7.2V input with a stable 1A operating current provides consistent pulse energy for cardiac defibrillation.
Durability and Precision: Designed to operate within a wide temperature range (-15°C to 55°C) and under varying atmospheric pressures, making it suitable for global medical standards.
Technical Specifications
Product Specifically:
Automated External Defibrillators (AED)
High-voltage pulse ignition systems for specialized medical devices.
Compact plasma generation for disinfection equipment.
FAQ:
Q: What output voltage does an AED high-voltage generator normally need?
A: For AED units such as the TW-G-AF-X-1, typical output ranges from 25KV to 30KV, which provides enough energy for cardiac defibrillation.
Q: Why is compact size important for defibrillator internal parts?
A: Portable AEDs need to be lightweight and easy to access in emergencies. At only 60 mm in length, this generator helps shrink overall device size and fits well inside emergency kits.
Q: Is the TW-G-AF-X-1 safe for medical-device integration?
A: Yes. It adopts high temperature vacuum encapsulation, offering 30KV/mm insulation capacity to meet strict stability requirements for medical electronics.
