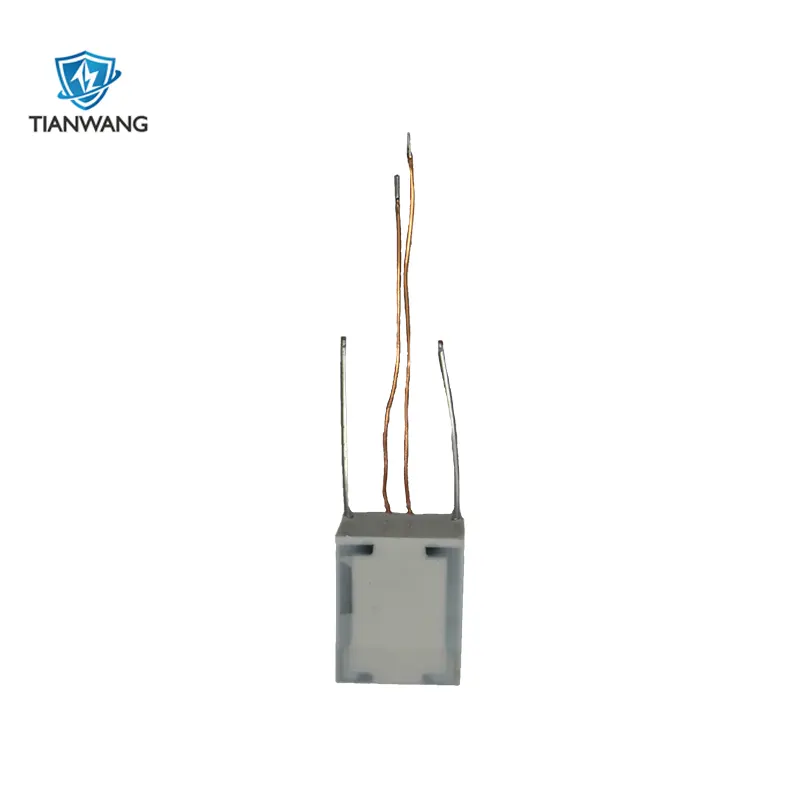

High Output Arc Ignition Module Feature
TW-202 high output arc transformer module works as the arc lighter transformer high voltage ignition coil for plasma and arc lighters. Powered by external DC input, it generates visible electric arcs between two electrodes.

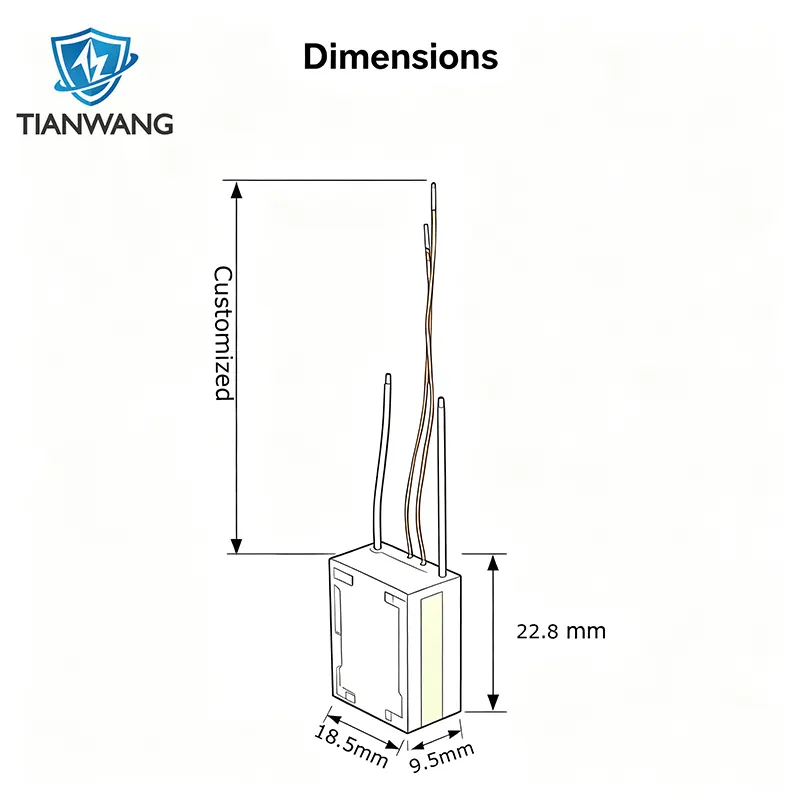

Ordinary arc transformer only makes a slim arc for lighting cigarettes, paper or thin wicks. TW-202 outputs a bigger and denser arc. Lighters equipped with it can ignite candles, BBQ charcoal, firewood and combustible gas, delivering performance similar to gas lighters. Module dimension: 22.8×18.5 ×9.5 mm; input lead length 40 mm, output lead length 40 mm. Parameters are manually measured with permissible tolerance, OEM & ODM customization is supported. Available for wholesale and DIY projects.
Why High Output Arc Ignition Modules with a Bigger Arc Win More End Customers
If you build, brand or wholesale plasma lighters, you already know the most common customer complaint: “it only lights cigarettes.” The root cause is almost always the ignition module. A standard arc lighter coil produces a small, narrow arc with limited energy transfer fine for a cigarette or a paper edge, but not enough to ignite thicker objects like charcoal, firewood or a candle with a thick wick.
End users do not judge your lighter by its shell design; they judge it by what it can light. A module with a larger arc and higher output directly solves the complaint that drives returns and negative reviews. The TW-202 was engineered around this problem: a high output high-voltage coil that gives your finished product a genuinely bigger arc, so your lighter can honestly be marketed as lighting more than cigarettes.

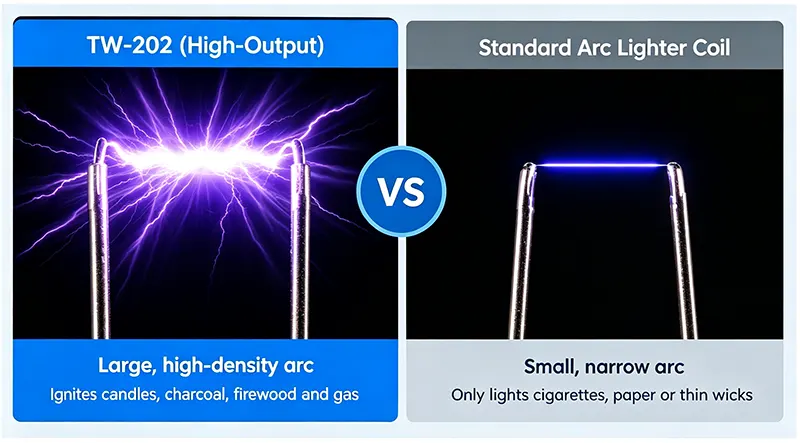

TW-202 High Output Arc Ignition Module vs. Standard Arc Lighter Coil
Product Name: TW-202 High-Output Ignition Coil Module for Plasma Lighters Product Size: 22.8×18.5×9.5 mm Input Lead Length: 40 mm Output Lead Length: 40 mm Output power: 57 W Input Voltage: 12 VDC Output Voltage: Customized Working Current: 4.8 A Weight: 10.2 g Note: All of the parameters can be customized; manual measurement tolerance exists.
| Parameter | TW-202 (high-output) | Standard arc lighter transformer |
| Arc size | Large, high density arc | Small, narrow arc |
| Igniting distance | 8-10 mm | Typically 5–6.5 mm |
| Typical end-use ignition | candles, BBQ charcoal, firewood, gas | Candles, paper, thin wicks |
| Output voltage | Customized | 7.5–8.5 kV |
| Input voltage | 12 V DC | 3.2–4.2 V DC |
| Value to your product | Differentiated “big arc” positioning, fewer “can’t light” complaints | Commodity performance, price competition |
Applications of the TW-202 Ignition Module
The TW-202 high voltage ignition coil is designed as a drop-in power component for ignition devices:
Arc / plasma lighters
cigarette lighters, candle lighters, BBQ and grill lighters
Moxibustion (TCM) instruments
stable high-voltage ignition for moxa devices
Heaters and stoves
ignition for alcohol stoves, gas heaters and pulse-ignition appliances
Science and education kits
high-voltage arc generator experiments and DIY electronic projects
Smart beehives and pest control devices
pulsed high-voltage ignition applications
Industrial ignition accessories
custom ignition solutions for original equipment manufacturers
Note: The module must be paired with battery and drive board. Above are common target applications; please confirm achievable use cases according to TW 202 actual measured performance.
Technical Specifications
| Product Name | TW-202 High-Output Ignition Coil Module for Plasma Lighters |
| Product Size | 22.8×18.5×9.5mm |
| Output power | 57W |
| Input Voltage | 12VDC |
| Output Voltage | Customized |
| Working Current | 4.8A |
| Weight | 10.2g |
| Note | All of the parameters can be customized |

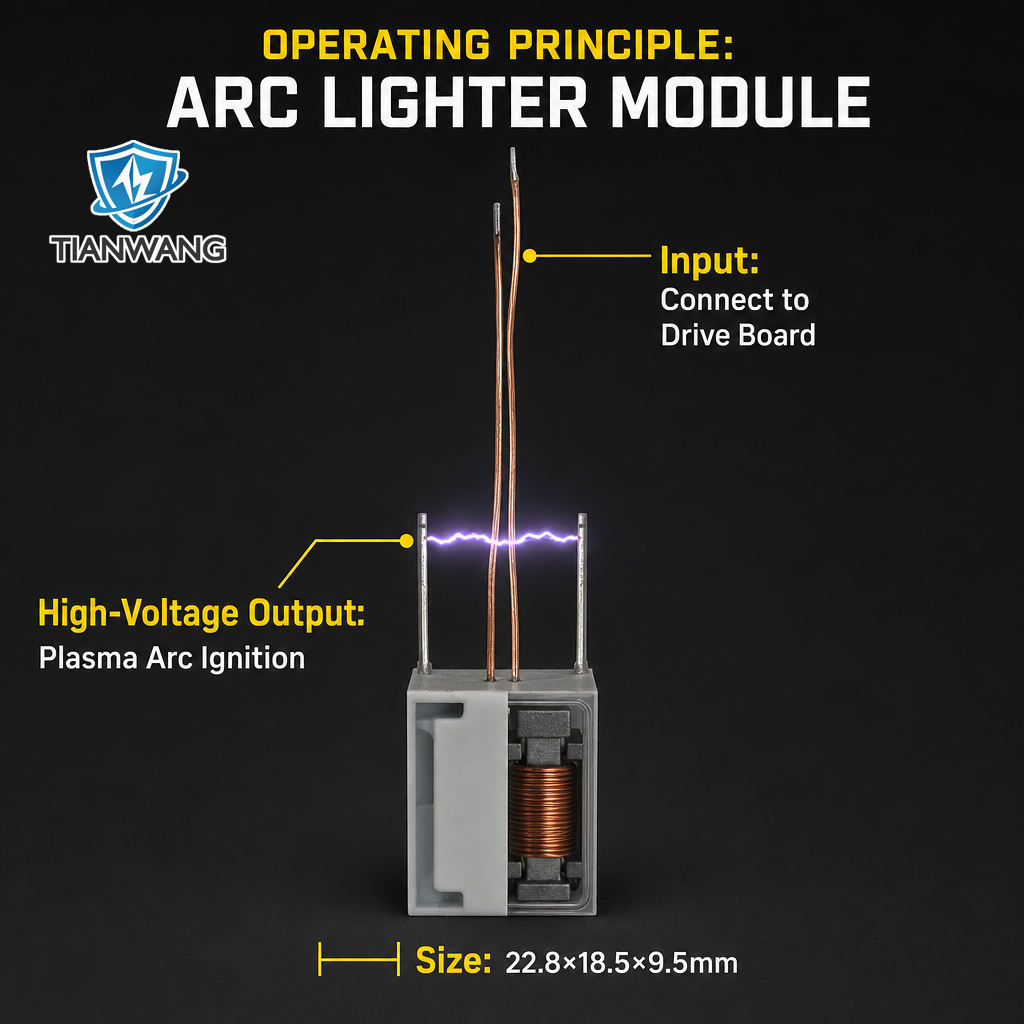

How the High Output Arc Ignition Module Works

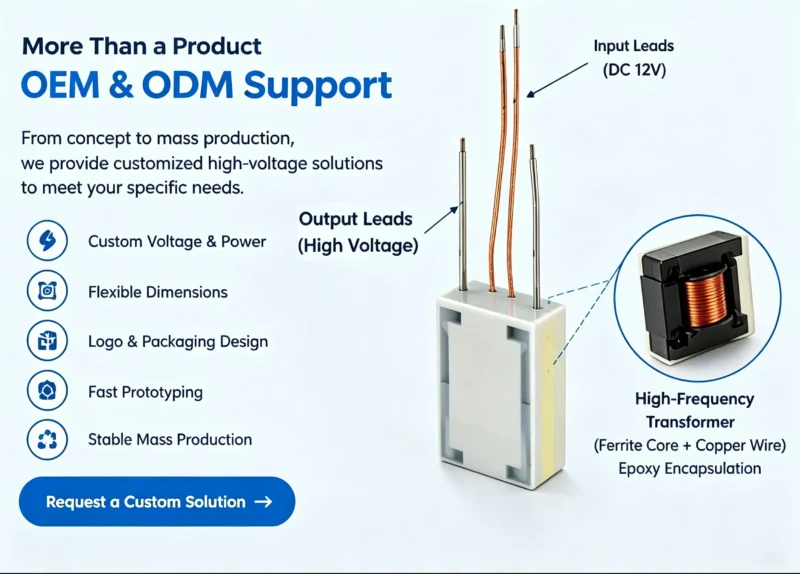

An arc lighter transformer is a step-up (boost) high-voltage generator. The TW-202 contains a compact high-frequency transformer wound on a ferrite core with copper wire, encapsulated in epoxy with an insulating sleeve. When the drive board drives the primary winding with pulsed DC, the secondary side steps the voltage up to kilovolt level. This high-voltage output ionizes the air between two electrodes and produces a plasma arc whose core temperature is high enough to ignite flammable materials.
The module is a power component, not a complete lighter: it must be connected to a battery and a drive board to operate. Its small size (22.8×18.5×9.5 mm) and simple peripheral circuit let manufacturers integrate it into slim, lightweight lighter designs.
FAQ：
Q:When lighting candles, the tip of ordinary arc lighter transformer will be stained with candle wax and fail to ignite.
Can your arc lighter ignition module still ignite normally when candle wax sticks to the ignition tip?
A:Yes. Common arc lighter transformer stop working once candle wax covers the tip. Our arc lighter ignition module can still light easily even if there is candle wax on the ignition head.
Q:Soot or carbon deposits will form on the high voltage transformer for arc lighter tip when lighting candles, which makes regular arc lighter module unable to ignite. Can your electronic lighter module work properly when carbon soot accumulates on its ignition head?
A:Yes. Ordinary electronic lighter module will lose the ignition function once carbon soot builds up on the tip. Our arc lighter parts can ignite reliably even with carbon deposits on the ignition head.
Q: How many times can this arc lighter parts fire in total? What is its service life?
A: The total ignition times can reach more than 100,000 times under normal use. The service life depends on usage scenarios.
Q: Is this high voltage arc ignition transformer waterproof? Can it work in humid environments?
A: It is splash-proof, but NOT waterproof. Please avoid soaking it in water. It can be used in normal humid indoor environments.
Q: Can you do custom development? Besides the high voltage arc ignition transformer, can you customize arc lighters as well?
A: Yes. We have professional engineers to support product customization. Not only the high voltage arc ignition transformer, but also various types of arc lighters can be customized according to your requirements.
