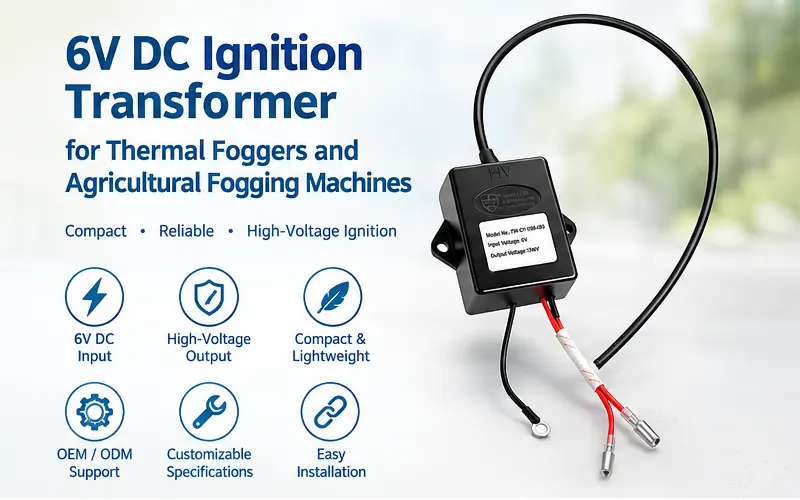

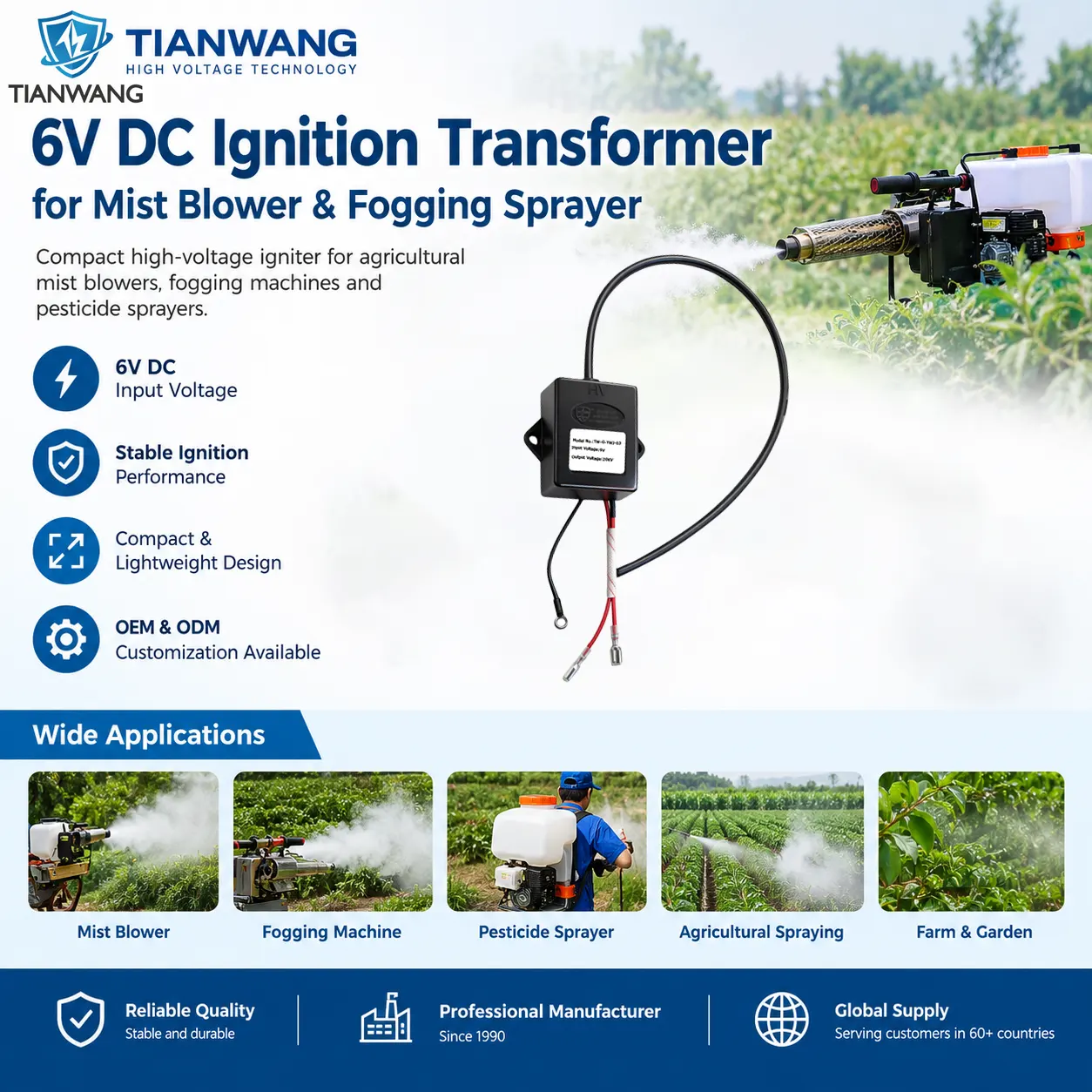

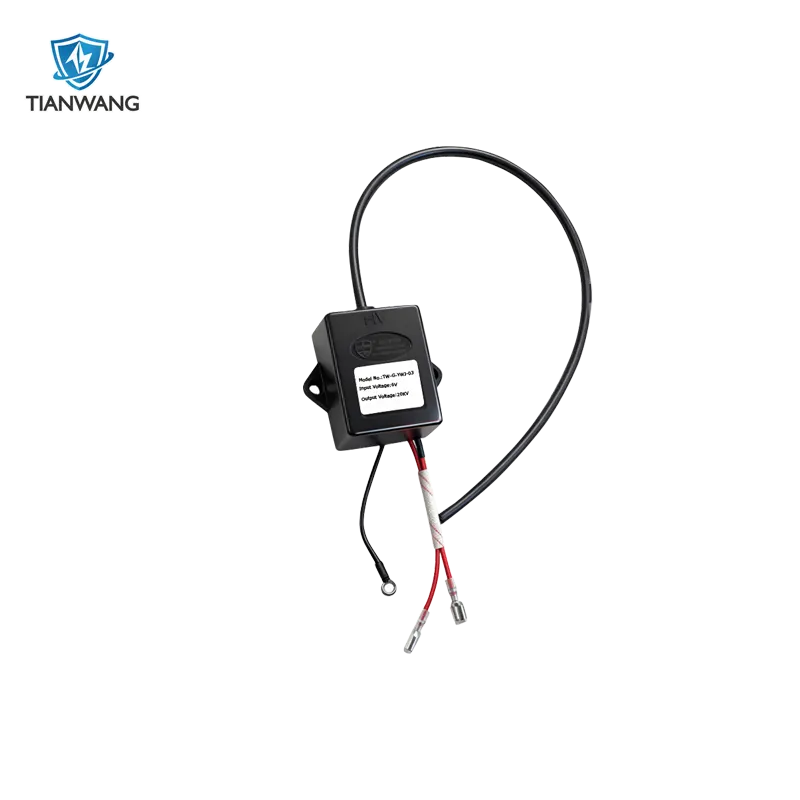

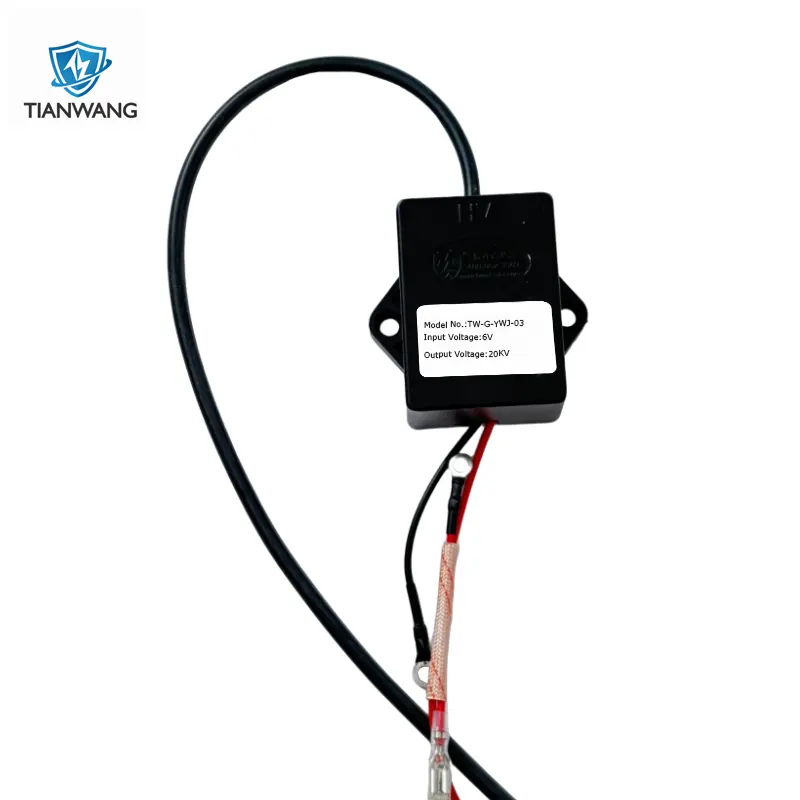

Ignition Transformer for Mist Blower Product Overview
The 6V DC ignition transformer for mist blower and fogging sprayers is a compact, high-voltage ignition component engineered for agricultural mist blowers, thermal fogging machines, and pesticide sprayers. It converts low-voltage DC battery power into a high-voltage ignition output, ensuring fast, consistent spark ignition and reliable starting for small fogging and spraying equipment in the field or on the job.

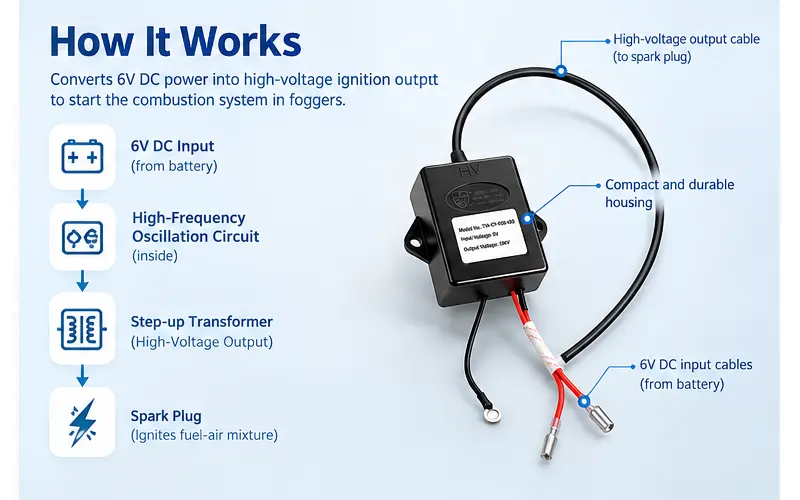

Ignition Transformer for Mist Blower How It Works (Working Principle)
Like most fog machine igniters, our ignition transformer works on an electronic pulse ignition and high-voltage step-up principle:
Low-voltage DC input — Powered by a 6V (or customizable) DC battery or dry-cell power source.
High-frequency oscillation — Internal transistors and an oscillation circuit convert the stable DC into a high-frequency AC signal.
High-voltage step-up — A built-in step-up transformer (high-voltage coil / high-voltage package) amplifies the signal to 12–15 kV or higher ignition voltage through electromagnetic induction.
Spark discharge — The high voltage is delivered to the ignition pin / spark electrode at the edge of the combustion chamber, producing a strong electric spark across the electrode gap.
Ignition — The atomized fuel-air mixture in the combustion chamber ignites instantly, driving the pulse-jet engine into rapid, reliable operation.
Ignition Transformer for Mist Blower Key Features
1.6V DC power input — The standard model operates on 6V DC; other input voltages (e.g., 12V) can be customized.
2.High-voltage ignition output — Delivers up to 12–15 kV (up to 30 kV max, depending on the design) for fast, dependable starting.
3.Compact & lightweight design — The small body fits easily inside handheld or backpack foggers with limited installation space.
4.Epoxy-resin potted & weather-resistant — Waterproof, anti-aging, and anti-leak encapsulation makes it suitable for humid, dewy, low-temperature, and dusty outdoor farm conditions.
5.Continuous ignition capability — Good thermal stability and high durability support continuous sparking without premature burnout.
6.Simple wire connection — Easy to install as a direct OEM replacement.
7.Custom specifications available — Input voltage, output voltage, dimensions, cable length, connectors, and mounting structure can all be tailored to your equipment.
Applications
This high-voltage igniter can be integrated into a wide range of equipment, including:
Agricultural mist blowers, Pesticide fogging machines, Farm spraying equipment, Portable thermal foggers, Fuel-powered spraying machines, Other customized fogging equipment
Technical Reference (Typical)
| Parameter | Value |
| Input voltage | 6V DC (typical) customizable |
| Working current | ~2.0–3.0A (reference) |
| Output voltage | up to 12–15KV, 30KV max (reference) |
| Ignition distance | ~6mm (reference) |
| Continuous ignition time | up to ~30 min (reference) |
| Weight | ~120g (reference) |
| Outline dimensions | 60.5 × 30.5 × 30.5mm (reference) |
| Operating voltage range | DC 5.2V–6.8V (reference) |
| Working ambient temperature | 5°C–45°C (reference) |
Note: All parameters can be customized according to your equipment and application requirements.
FAQ – Common Questions and Answers
Q1: What is the Ignition Transformer for Mist Blower standard input voltage?
A: The standard model operates on 6V DC. Other input voltages, such as 12V DC, can be customized.
Q2: What are the output voltage and ignition distance?
A: They depend on your equipment and application requirements. Please specify the required high-voltage output and ignition distance, and our engineers will confirm the appropriate specifications.
Q3: Can you customize the size and wiring?
A: Yes. Dimensions, cable length, connectors, and mounting structure can all be customized according to your design.
Q4: Do you support OEM and ODM?
A: Yes. We have supported OEM replacement and ODM development for different applications since 1990.
Q5: What information should I provide for a quotation?
A: Please provide the following information:
Input voltage, Required high-voltage output, Ignition distance, Dimensions, Cable length, Connector type, Mounting structurem, Working time / operating conditions
Q6: What is the MOQ?
A: Please contact us with your required quantity. We will provide the MOQ and lead time together with the quotation.
